13.969″ Extended C.C. – 8.50″ Compressed – 8mm Rod 20mm Tube

80 07002 80 07102 Picture 17.063″ Extended C.C. – 10.625″ Compressed – 8mm Rod 20mm Tube
80 06132 80 06792 Picture 12.5″ Extended C.C. – 8.25″ Compressed – 8mm Rod 20mm Tube

See below table for details

Item # 80-26102 Categories: ,

Description

Product #Capacity:Technical Drawing:
80-26102 24 Lbs Cap

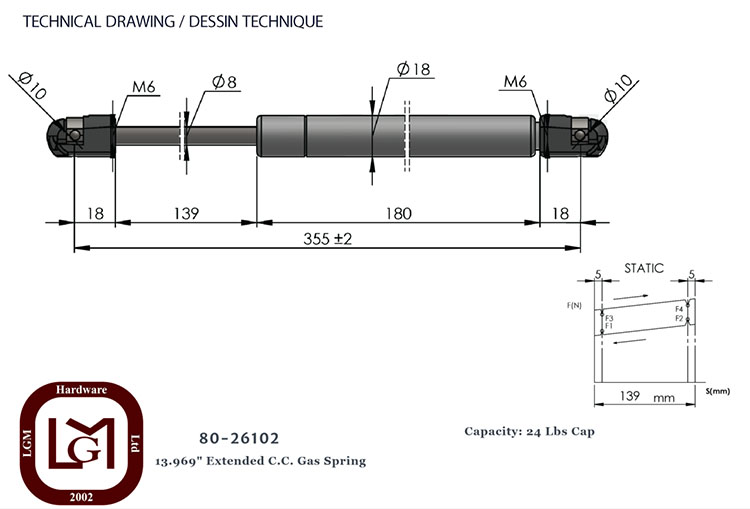

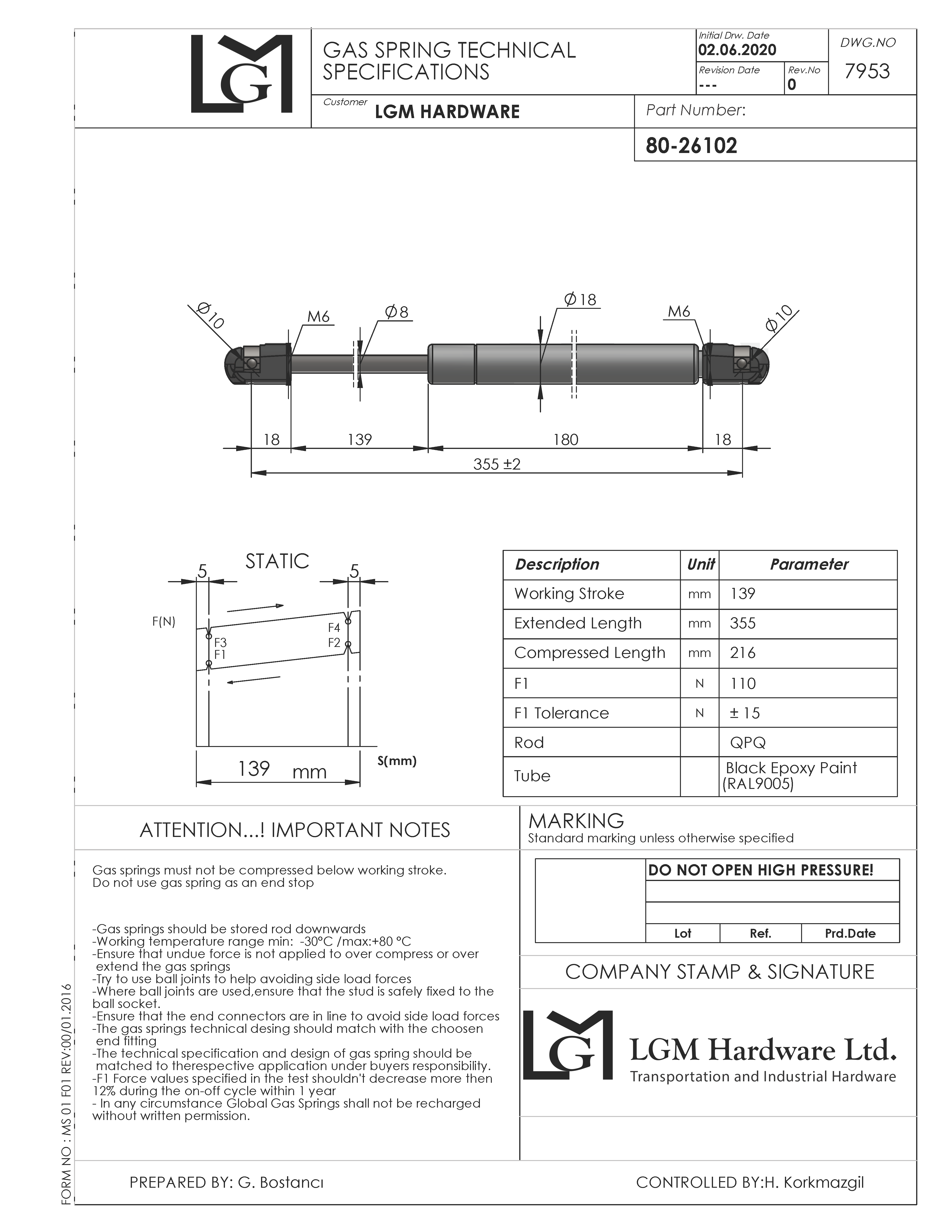

80 26102 Technical Drawing
Click to make photo larger

L1 = 5.469    L2 = 13.969    L3 = 8.50



Additional information

Item #

80-26102
