18″ Extended C.C. – 10.50″ Compressed – 8mm Rod 20mm Tube
Requires 2 Ball Studs per Gas Spring – Item # 77-70362
- Description
- Additional information
Description
Temperature range is standard as -30°C/+80°C
The pressure decreases/raises by 3% for every 10°

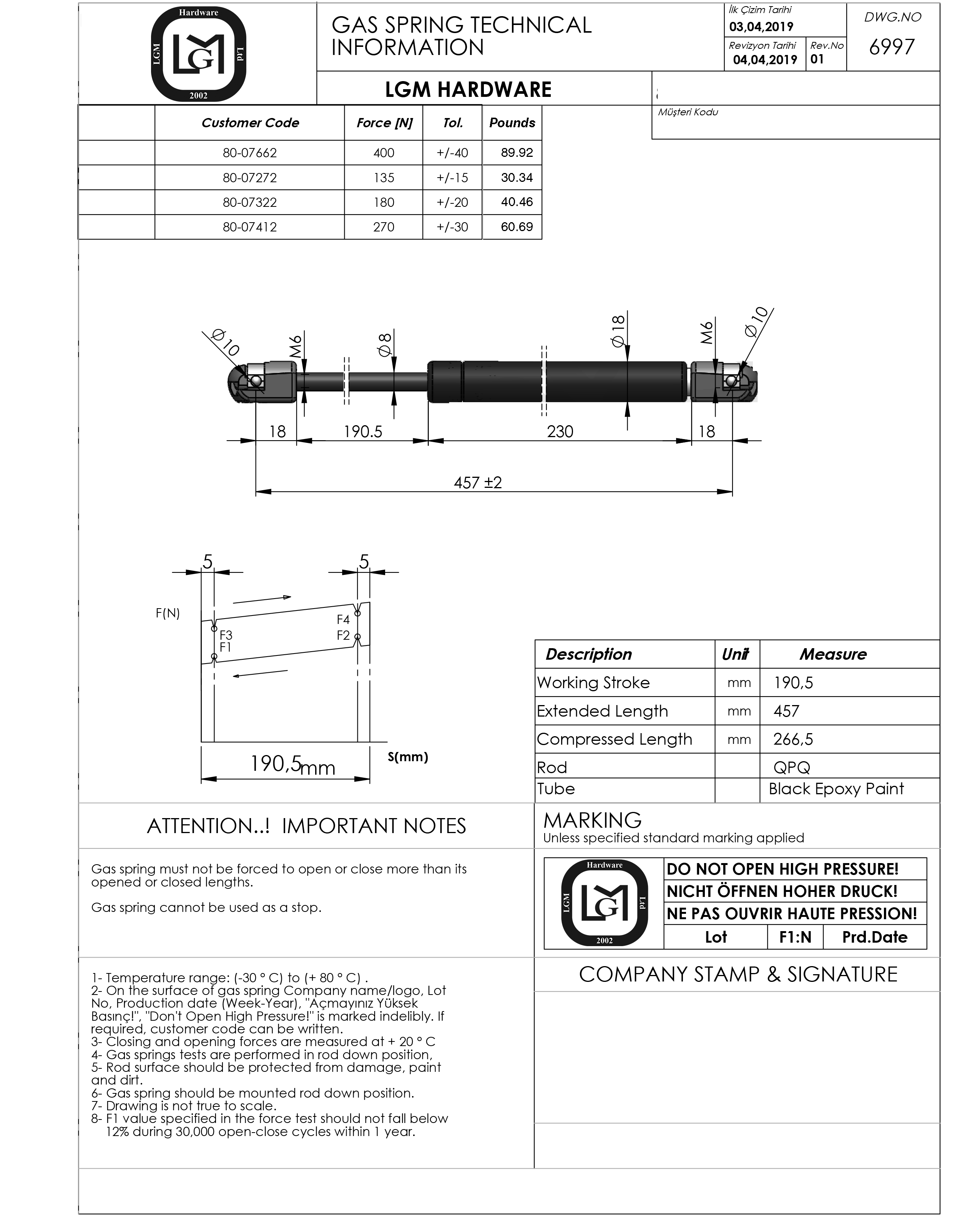

| Product # | Capacity: | Extended C.C: | Compressed: | Technical Drawing: |
|---|---|---|---|---|

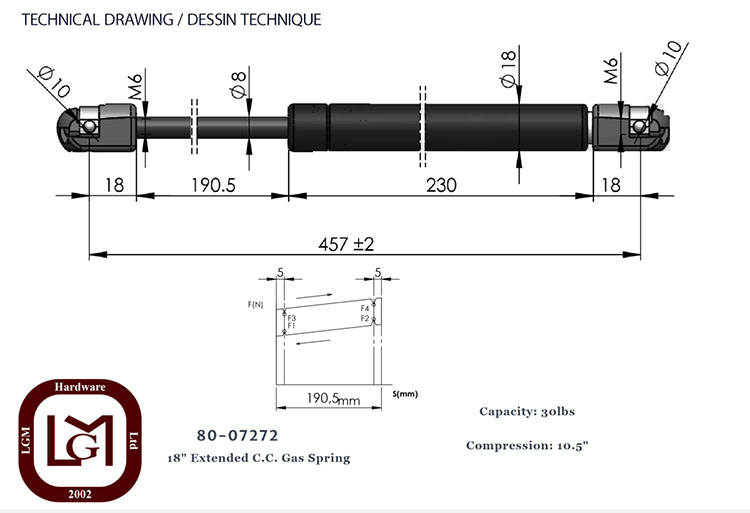

| 80-07272 | 30lbs | 18" | 10.5" |  |

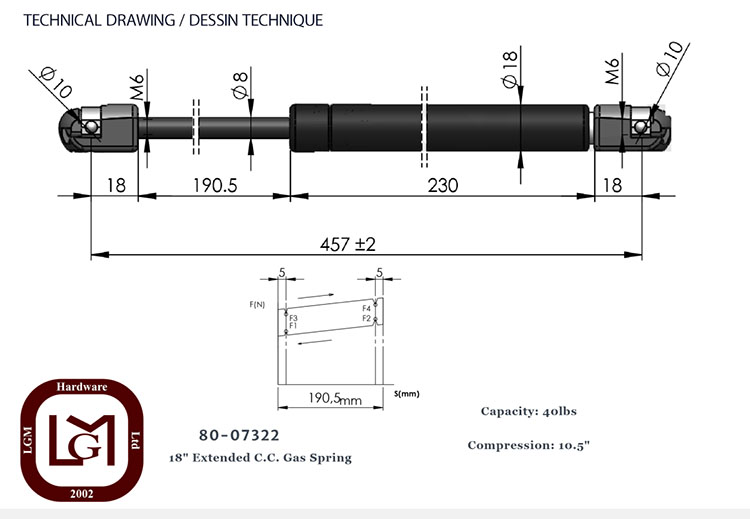

| 80-07322 | 40lbs | 18" | 10.5" |  |
| 80-07412 | 60lbs | 18" | 10.5" |  |

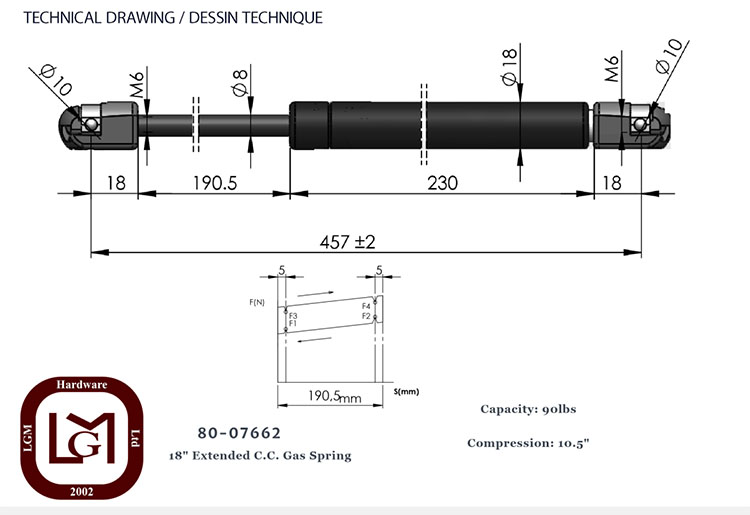

| 80-07662 | 90lbs | 18" | 10.5" |  |
| 80-07802 | 120lbs | 18" | 10.5" |  |
Accessories:
| Product # | Description: |
|---|---|
| 77-70362 | Ball Stud |
L1 = 7.5″ L2 = 18″ L3 = 10.5″
10mm Plastic End Fitting
Additional information
| Item # | 77-70362, 80-07272, 80-07322, 80-07412, 80-07662, 80-07802 |
|---|
