35.68″ Extended C.C. – 19.58″ Compressed – 10mm Rod 21mm Tube

80 08052 80 09052 Picture 27.875″ Extended C.C. – 17″ Compressed – 10mm Rod 21mm Tube
77 10102 Product Brackets with Ball Studs

Complete with 13mm Steel Ball Stud and Steel Socket

Item # 80-18702, 80-18902, 80-19102, 80-19302, 80-19502, 80-19702, 80-19902 Categories: ,

Description

Product #Capacity:Extended:Compression:Technical Drawing:
80-1870256lbs cap35.68″ 19.58″
80-1890279lbs cap35.68″ 19.58″
80-1910290lbs cap35.68″ 19.58″
80-19302124lbs cap35.68″19.58″
80-19502158lbs cap35.68″ 19.58″
80-19702203lbs cap35.68″ 19.58″

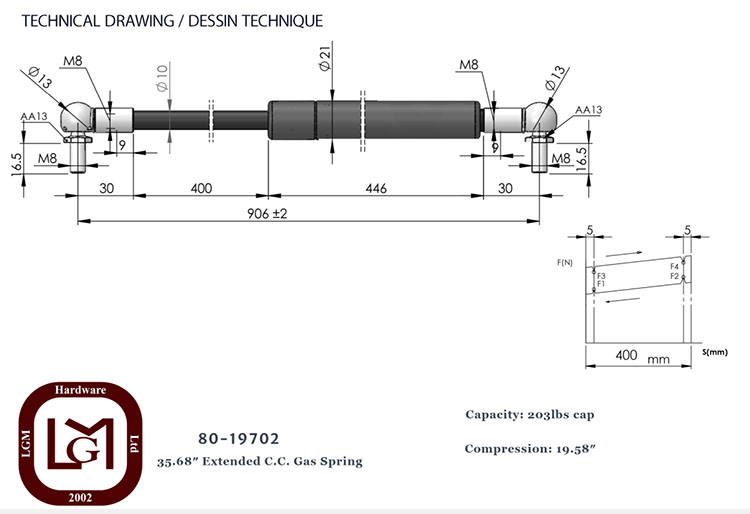

80 19702 Technical Drawing
Click to make photo larger
80-19902225lbs cap35.68″ 19.58″

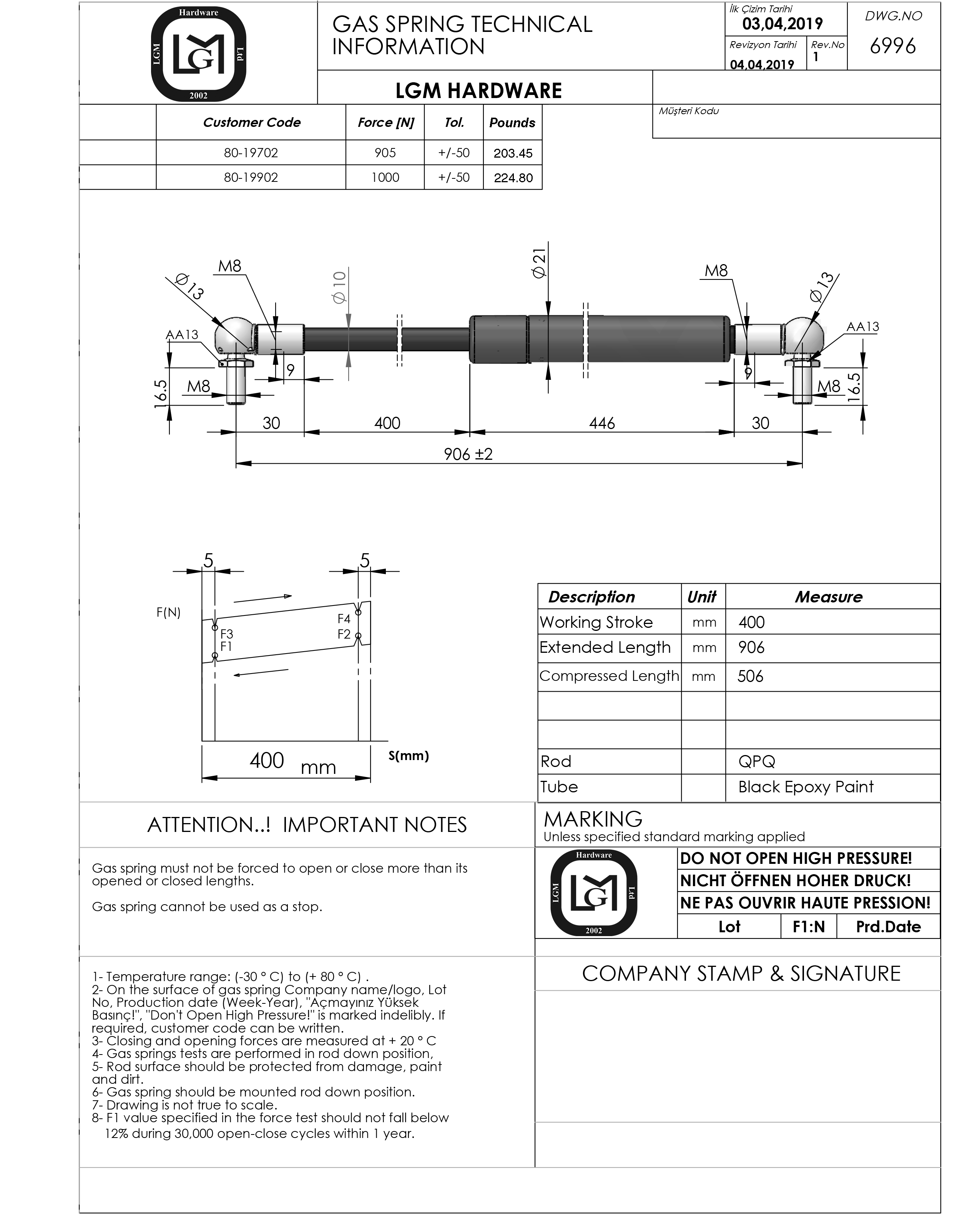

80 19902 Technical Drawing
Click to make photo larger

L1 = 15.75″ L2 = 35.68″ L3 = 19.58″
Complete with 13mm Steel Ball Stud and Steel Socket





Additional information

Item #

80-18702, 80-18902, 80-19102, 80-19302, 80-19502, 80-19702, 80-19902
