Brackets with Ball Studs
Height: 1.5″ | Width: 1″
- Description
- Additional information
Description
| Product # | Description: | Product Image: | Technical Drawing: |
|---|---|---|---|

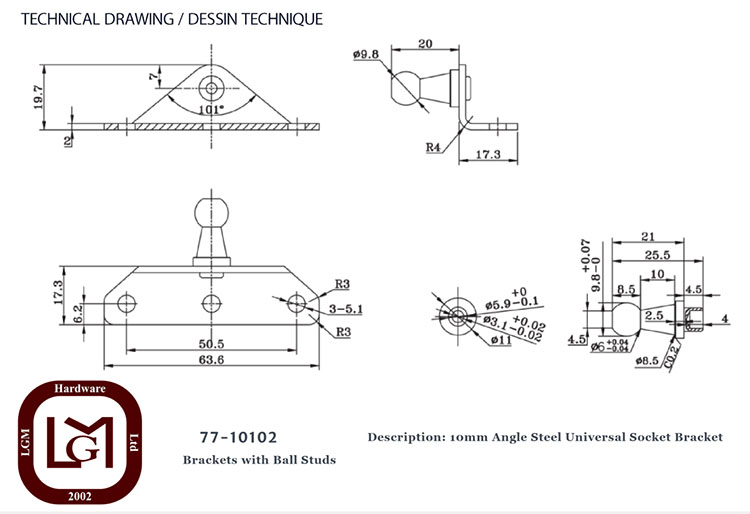

| 77-10102 | 10mm Angle Steel Universal Socket Bracket |  |  |

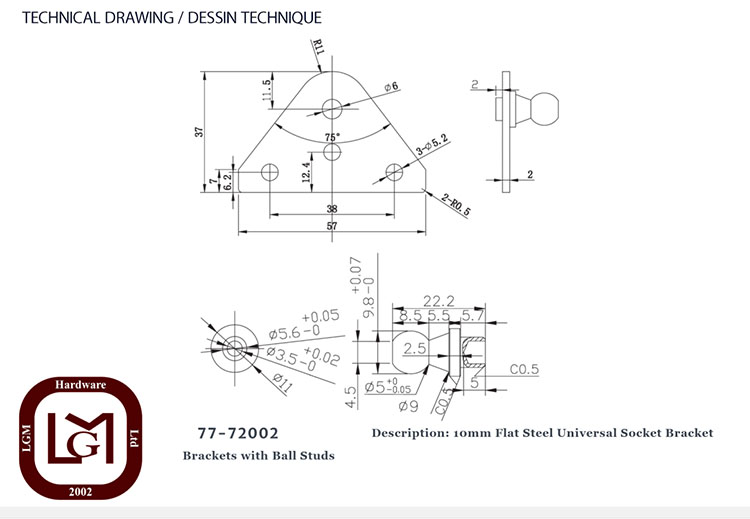

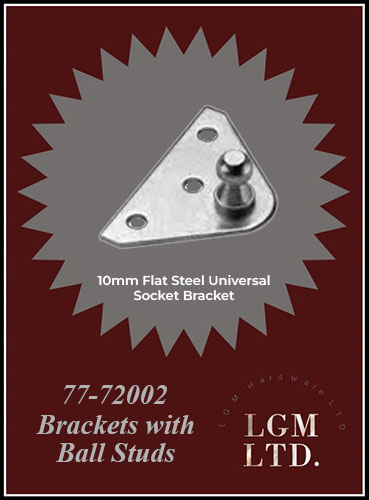

| 77-72002 | 10mm Flat Steel Universal Socket Bracket |  |  |

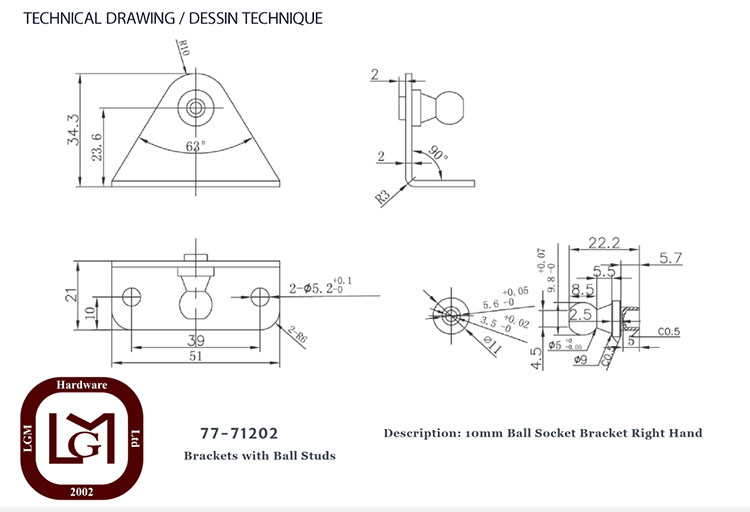

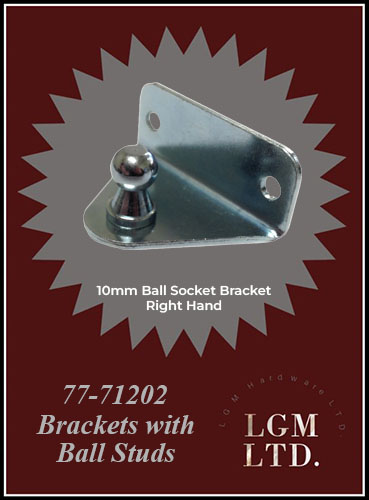

| 77-71202 | 10mm Ball Socket Bracket Right Hand |  |  |

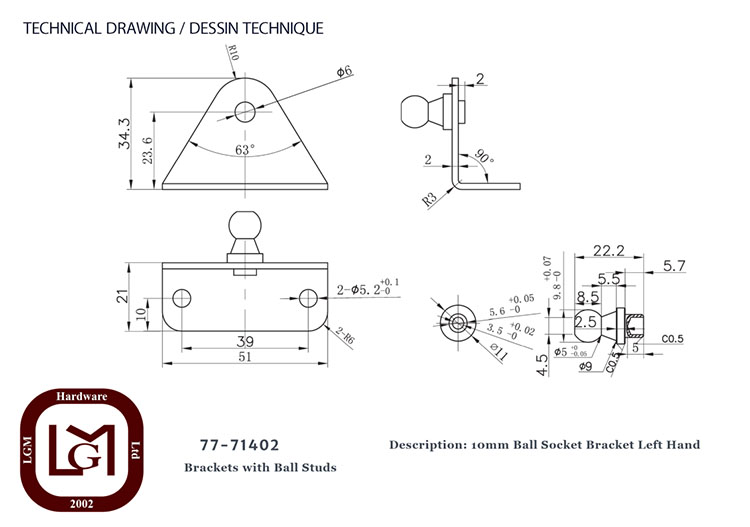

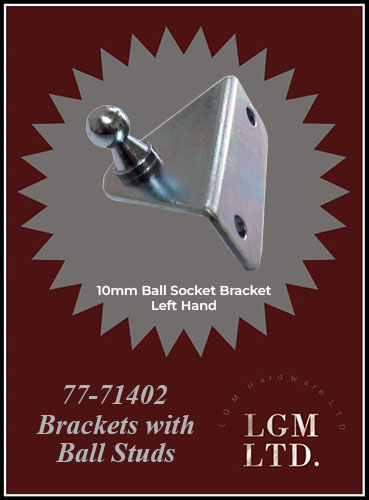

| 77-71402 | 10mm Ball Socket Bracket Left Hand |  |  |

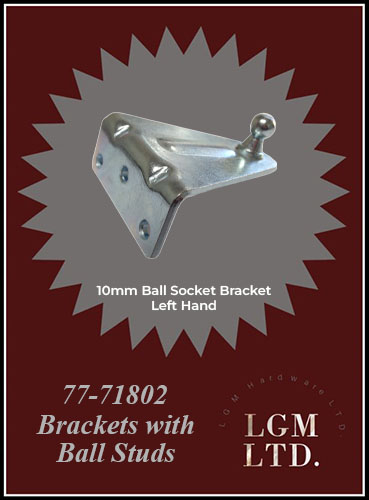

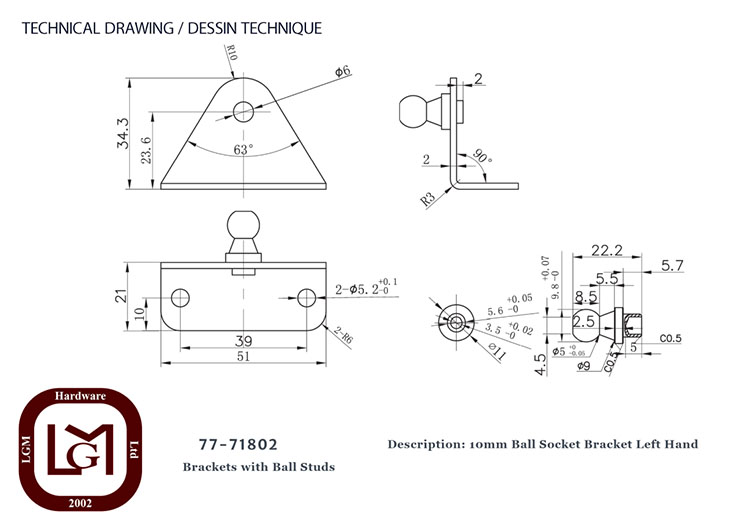

| 77-71802 | 10mm Ball Socket Bracket Left Hand |  |  |

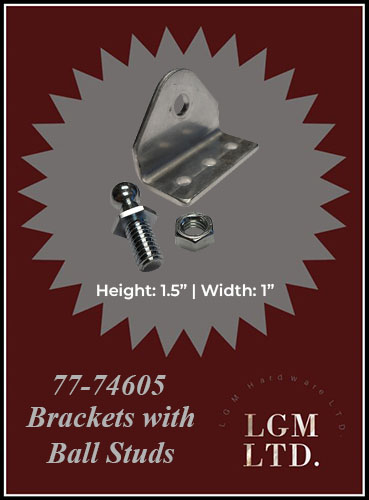

| 77-74605 | Height: 1.5" Width: 1" |  |
Ball Stud:
| Product # | Description: | Product Image: | Technical Drawing: |
|---|---|---|---|

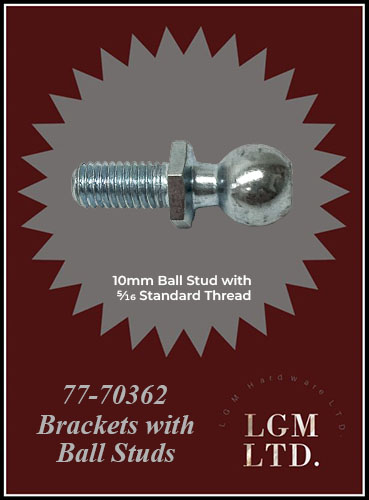

| 77-70362 | 10mm Ball Stud with 5/16" Standard Thread |  |  |
| 77-70402 | 13mm Ball Stud with 5/16" Standard Thread | ||

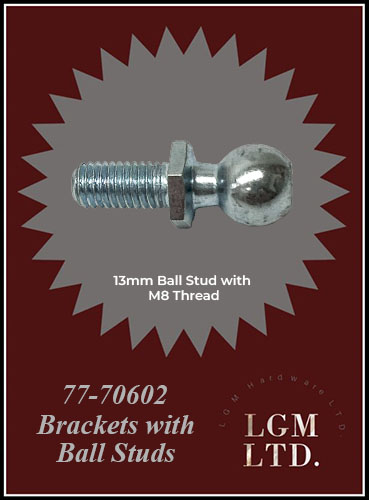

| 77-70602 | 13mm Ball Stud with m8 Thread |  |
Additional information
| Item # | 77-70362, 77-70402, 77-70602, 77-711202, 77-71402, 77-71802, 77-72002, 77-74605 |
|---|
